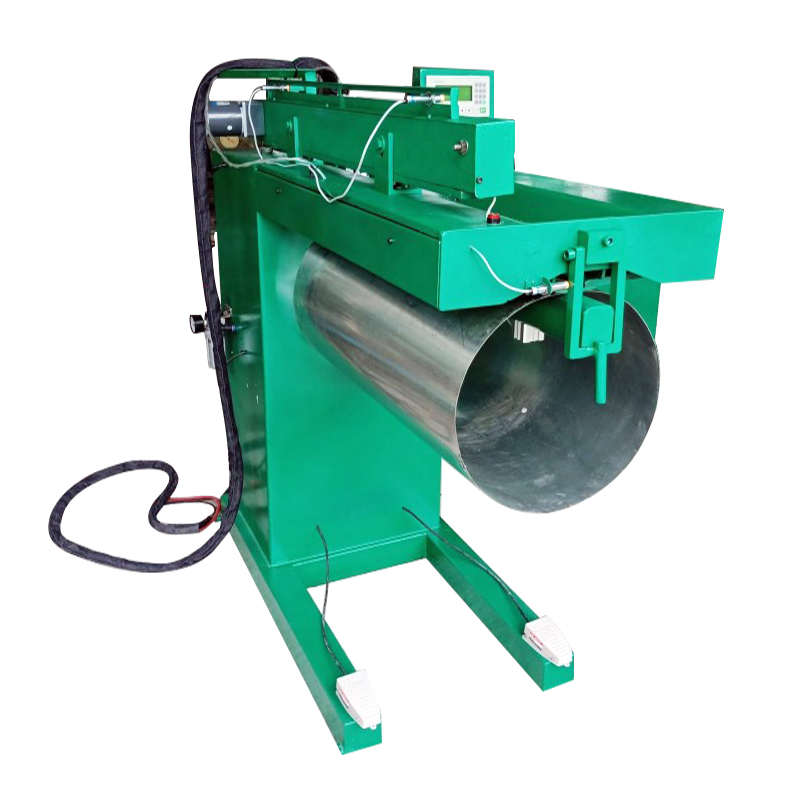

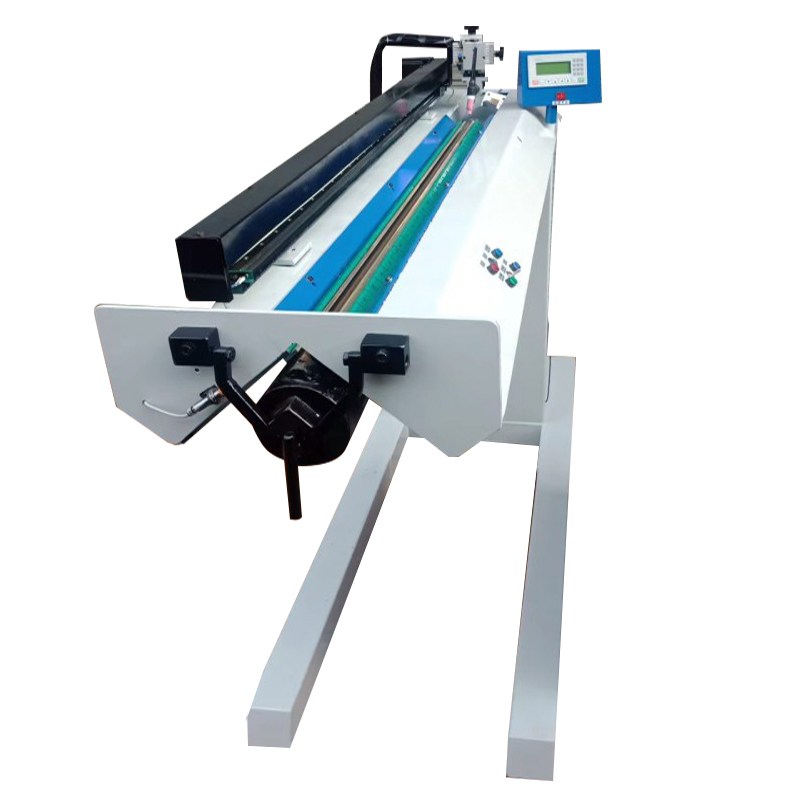

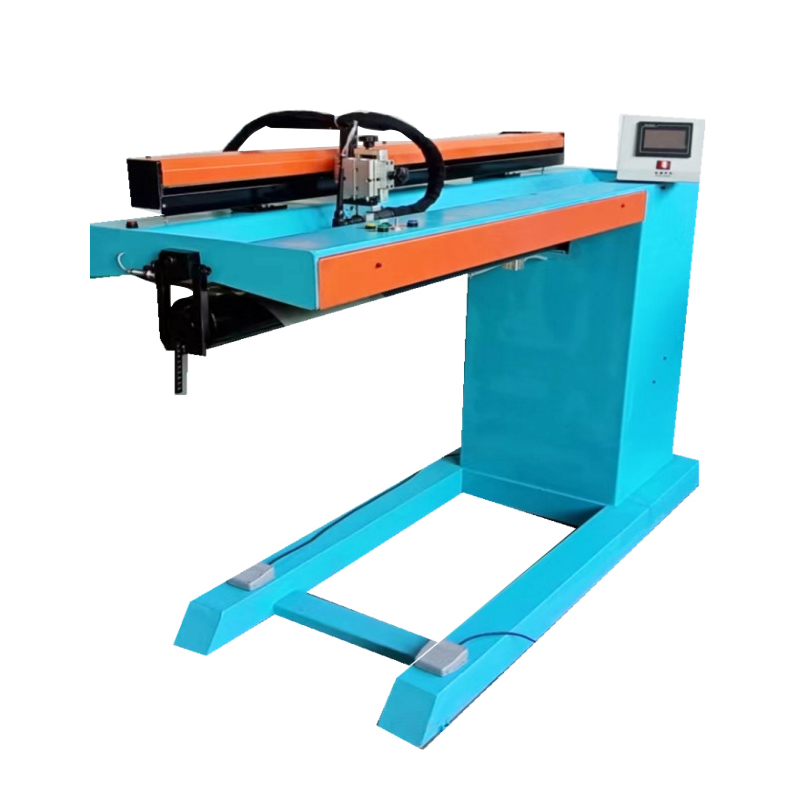

Argon Arc Straight Seam Welding Machine For Steel Cylinder
Pneumatic Control: The whole machine control adopts Mitsubishi PLC+text display control from Japan, with visual working status and automatic fault detection function. Various actions can also be programmed according to customer requirements, and independent welding gun walking mechanism speed control circuit can be used.
Description
Feature
1. The welding host adopts a cantilever structure, and the frame is made of steel material bent and welded.
2. Pneumatic compression structure, tightly arranged along both sides of the straight seam, and the butt weld seam is uniformly compressed throughout the entire welding length range; The spacing between the left and right keys can be adjusted to adapt to the welding of different workpieces.
3. According to the thickness size of the workpiece, a cylinder type is used with sufficient clamping force to prevent thermal deformation during the welding process.
4. The welding core shaft is embedded with a copper water-cooled circulation system mold; Provide weld seam back gas protection function. According to the processing of different welding process slots for cylindrical or flat workpieces, achieve single-sided welding and double-sided forming.
5. The distance between the welding core shaft and the pressure plate is adjustable, which can adapt to the welding requirements of workpieces with different thicknesses.
6. The welding gun is driven by a DC servo motor. Inner layer steel wire belt transmission, Taiwan precision track, smooth walking.
7. All air pipes and cables are placed inside the drag chain, with a clean and beautiful appearance, while avoiding cable breakage.

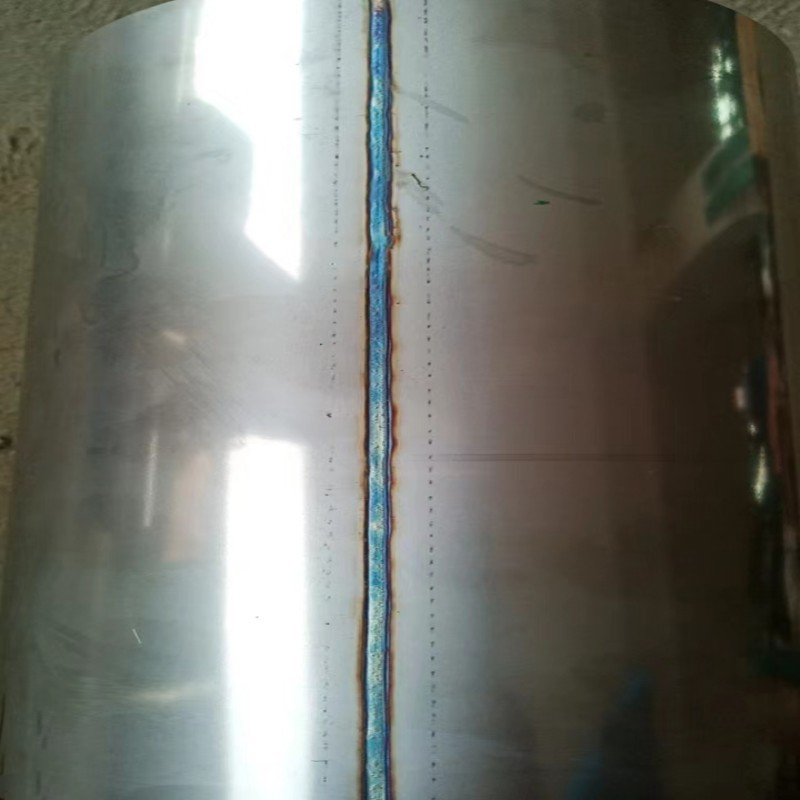

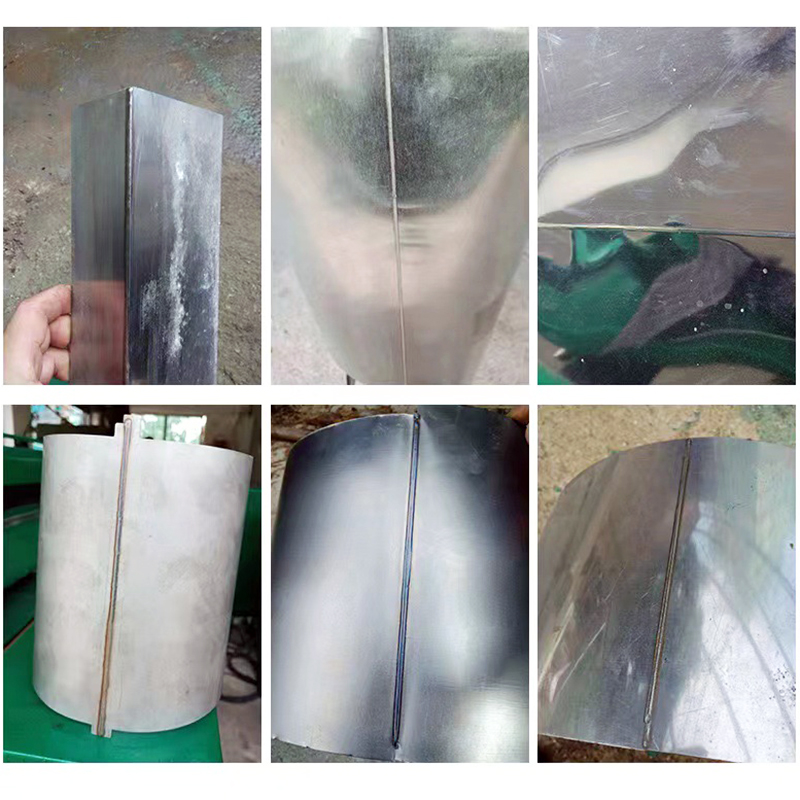

8. High weld quality and high degree of automation.
Specification
